300mm solar power led energy saving traffic lights

FOB Reference Price:Get Latest Price
  • >=21 Sets
    US $54.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BBM
Model Number:
SG300-3-15A
LED Color:
Yellow
Wave Length:
590±5nm
Viewing Angle:
30°
Light Intensity:
≥400cd/㎡
LED Normal working life:
80,000 hours
Working temperature:
-30 ~ 70℃
Flashing Frequency:
35±5 time/minute
Solar battery Capacity:
10W
Solar battery Normal working life:
10 years
Working voltage:
12 V
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
K=K
Port
Shenzhen
Lead Time :
5-10 days
300mm solar power led energy saving traffic lights
Modle:SG300-3-15A

The benefit of 300mm solar power led energy saving traffic lights:
1.Long lifetime 100,000h
2.PC/Aluminum
3.Fast delivery
4.CE,ROHS approved
5.Waterproof,Heat-resisting
6.Easy installation
7.Fast delivery
8.CE RoHS GB14887-2003approved

Technical Parameters:

Specification

Φ300mm

Solar battery

Capacity

10W

Producing area

Germany Simens

Normal working life

10 years

Accumulator

Capacity

7Ah/12V

Producing area

China and America

Normal working life

Up to 3 years

LED

LED Q.ty

100pcs

Color

Yellow

Wave Length

590±5nm

Viewing Angle

30°

Light Intensity

400cd/m2

Normal working life

80,000 hours

Working temperature

-30 ~ 70

Flashing Frequency

35±5 time/minute.

Work and vacancy proportion

1 :3

Luminance proportion at day and night

2 :1

Working time of continuous rainy day

4 days

Working voltage

12 V

Power

5W

Protection Grade

IP65

Visual distance

>500 m

Housing Material

PC,UV Resistant

Installation Method

Hanging (Attached drawings)

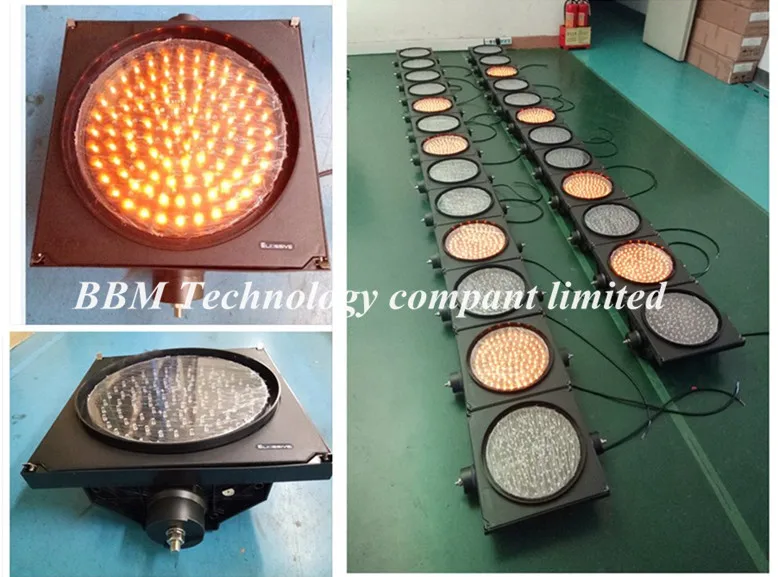

Showing you the testing picture :
solar traffic led light.jpg

Installation Sketch:
                       sketch1.png               sketch2.png

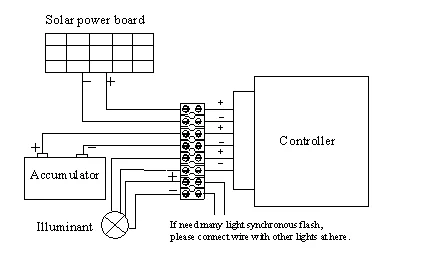

Terminal Connection Sketch:

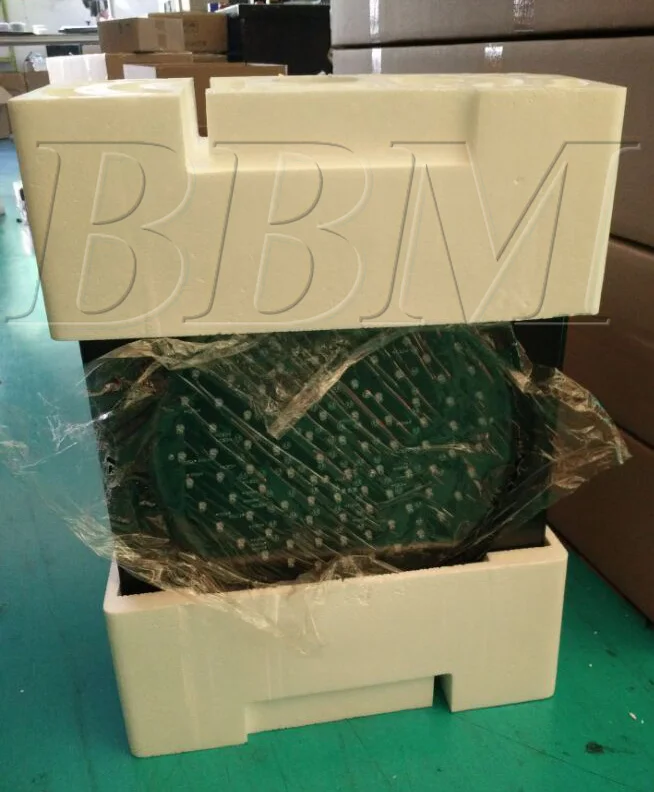

Package figure of products for reference:
packing wp.jpg

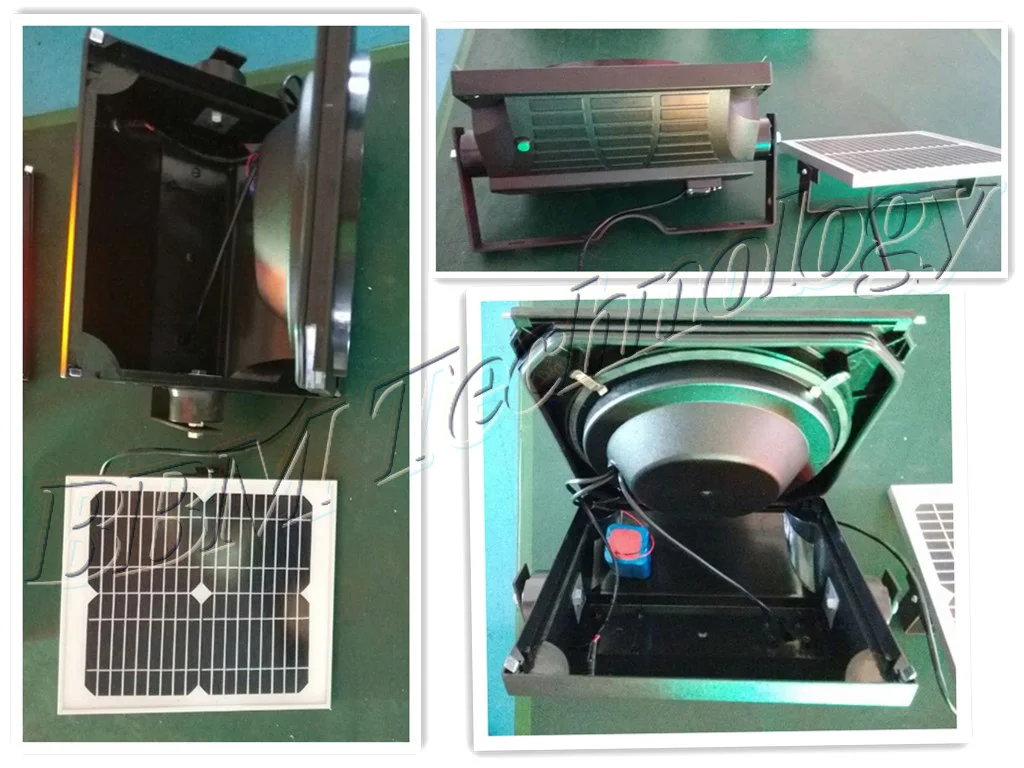

The picture of detail parts:
traffic lights solar wp.jpg
 Why choose the led traffic light product from BBM Company?
1 ) Wide work voltage
2 ) Water and dust proof
3 ) Long life span;100,000 hours
4 ) Energy saving , low power consumption
5 ) Easy installation,can be mounted by horizontally as well as vertially
6) Reduced operational costs
7) Intergrated LED luminous
8) Uniform optical output
9) Spectifically designed to meeting world standards

Introduct the BBM Company for you as below:
BBM TECHNOLOGY COMPANY LIMITED was founded in Shenzhen,China.
We are one of the largest manufacturer,supplier and Exporter with LED Traffic Light products in China.factory.jpg

BBM Company Certificate:

BBM in the Exhibition:


Why you should choose BBM?
A:Quality certification: CE.ROHS,EN12368 and IP65 and approved other quality standards.
· LED: Our Led is high brightness, large visual angle. all the led use the internations brand Jing yuan etc.
· The housing of material: heat-resisting,Eco-friendly PC material
· Horizontally or vertically is available.
· Wide working voltage: AC85V-265V. 50HZ/ 60HZ. DC12V /DC24V is available which can connect to panel.
· Delivery time: 5-10 days for sample time. 10-15 days for bulk products.
· Quality guarantee period for 2 years.
· More quantity you need that more discount you can got.
· A profession engineer team will design new products per your need.CAD drawing and Program Designing service.
