300mm Cobweb lens red and green ball led light

FOB Reference Price:Get Latest Price
  • 1 - 20 Sets
    US $109.00
  • 21 - 50 Sets
    US $107.85
  • >=51 Sets
    US $105.63
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BBM
Model Number:
JD300-3-25ACL
LED Color:
Red/Green
LED Q.ty:
Red:91pcs Green:91pcs
Light Intensity:
Red:≥364cd Green:≥637cd
Wave Length:
Red:625±5nm Green:505±5nm
Power Factor:
>0.9
Viewing Angle:
30°
Power:
Red:≤5W Green:≤8W
Working Voltage:
85V-265VAC,50/60HZ; 12/24VDC
Housing Material:
PC,UV Resistant
Warranty Time:
1 Year
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
K=K
Port
Shenzhen
Lead Time :
5-10 days
300mm Cobweb lens red and green ball led light
Modle:JD300-3-25ACL

The benefit of 2 LED plateful traffic light toll gate traffic light:
1.Long lifetime 100,000h
2.PC/Aluminum
3.Fast delivery
4.CE,ROHS approved
5.Waterproof,Heat-resisting
6.Easy installation
7.Fast delivery
8.CE RoHS GB14887-2003approved

Technical Parameters:

Color

LED Q.ty

Light Intensity

Wave Length

Power

Factor

Viewing Angle

Power

Working Voltage

Housing Material

RED

91pcs

364cd

625±5nm

>0.9

30°

5W

85V-265VAC,50/60HZ; 12/24VDC

PC,UV Resistant

GREEN

91pcs

637cd

505±5nm

8W

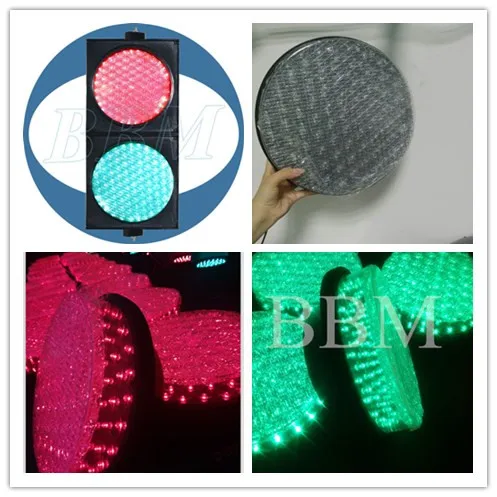

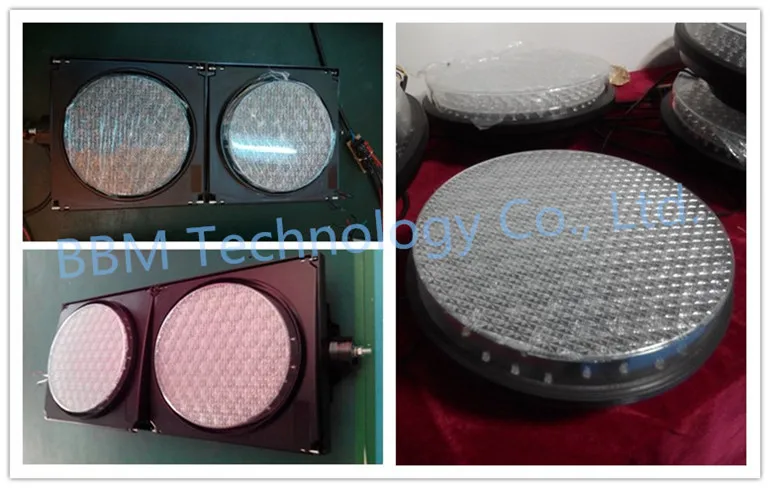

Showing you the testing picture :

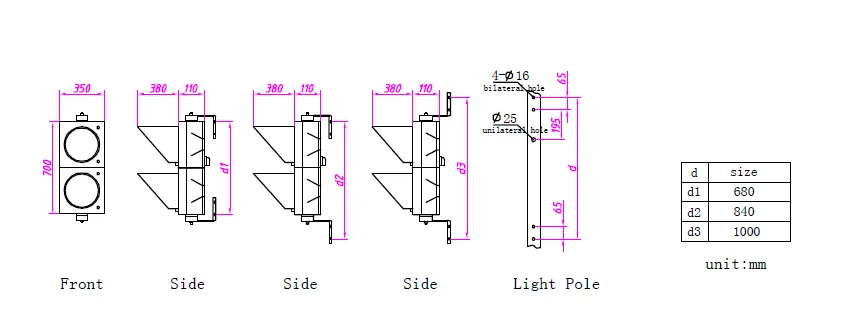

Installation Sketch:


Terminal Connection Sketch:


Packing Info:

Carton Size

Q'TY

GW

NW

Wrapper

Volume(CBM)

86*38*17cm

1pcs/carton

11.1kg

7.64kg

K=K Carton

0.06


Packing List:

Part name

Light

L Bracket

Sun Visor

M4x10 Screw

M4x20 Screw

Wiring Box And Gasket

Using Manual

Certificate

Q'ty.(pcs)

1

2

2

8

4

1

1

1


Package figure of 2 units traffic lights products for reference:

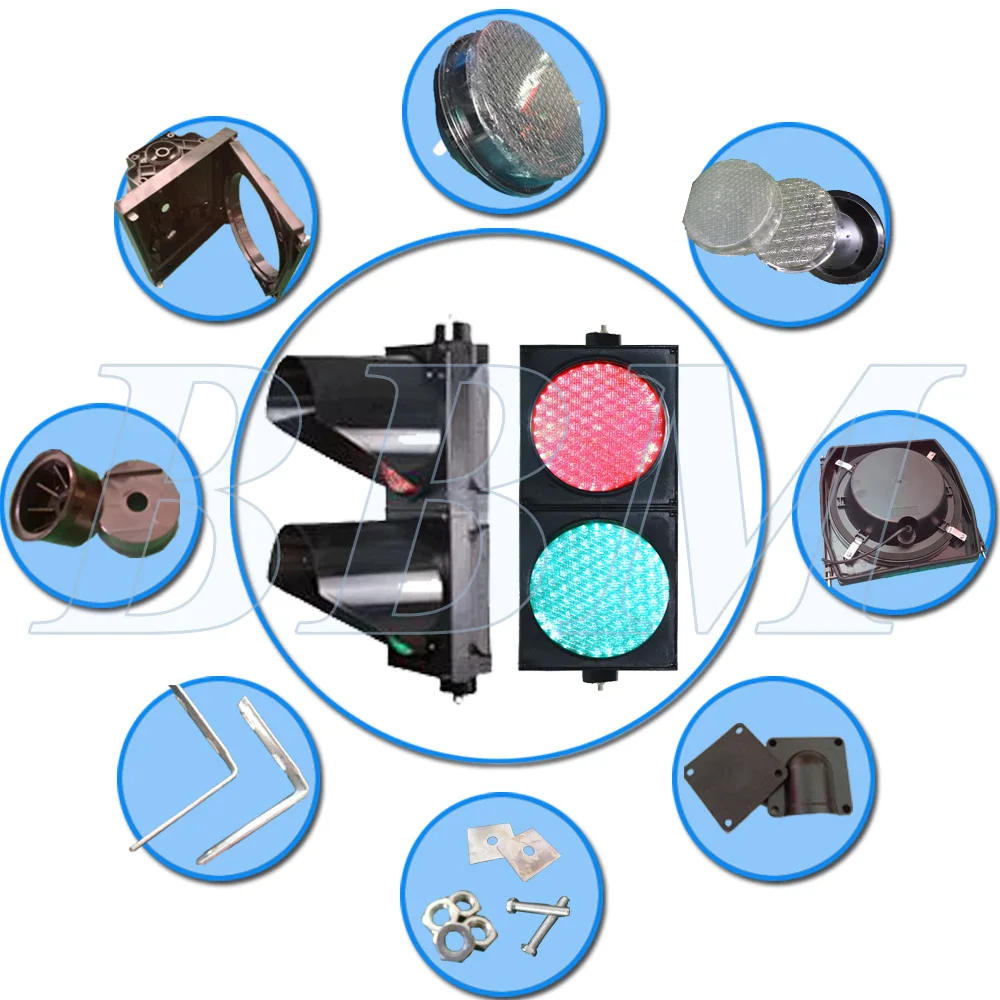

The picture of products detail parts:

 Why choose the led traffic light product from BBM Company?
1 ) Wide work voltage
2 ) Water and dust proof
3 ) Long life span;100,000 hours
4 ) Energy saving , low power consumption
5 ) Easy installation,can be mounted by horizontally as well as vertially
6) Reduced operational costs
7) Intergrated LED luminous
8) Uniform optical output
9) Spectifically designed to meeting world standards

Introduct the BBM Company for you as below:
BBM TECHNOLOGY COMPANY LIMITED was founded in Shenzhen,China.
We are one of the largest manufacturer,supplier and Exporter with LED Traffic Light products in China.

BBM Company Certificate:

BBM in the Exhibition:


Why you should choose BBM?
A:Quality certification: CE.ROHS,EN12368 and IP65 and approved other quality standards.
· LED: Our Led is high brightness, large visual angle. all the led use the internations brand Jing yuan etc.
· The housing of material: heat-resisting,Eco-friendly PC material
· Horizontally or vertically is available.
· Wide working voltage: AC85V-265V. 50HZ/ 60HZ. DC12V /DC24V is available which can connect to panel.
· Delivery time: 5-10 days for sample time. 10-15 days for bulk products.
· Quality guarantee period for 2 years.
· More quantity you need that more discount you can got.
· A profession engineer team will design new products per your need.CAD drawing and Program Designing service.
