Dia.200mm 3 color LED fresnel lens traffic light

FOB Reference Price:Get Latest Price
  • 1 - 20 Sets
    US $113.00
  • >=21 Sets
    US $110.00
Customization:
Customized logo (Min. Order: 50 Sets)
Customized packaging (Min. Order: 50 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BBM
Model Number:
JD200-3-35AFL
Color:
red yellow green
LED Q.ty:
90pcs
Light Intensity:
red/yellow:≥450cd;green:≥720cd
Wave Length:
red:625±5nm;yellow:590±5nm;green:505±5nm
Power Factor:
>0.9
Viewing Angle:
30°
Power:
red/yellow:≤5W;green:≤8W
Working Voltage:
85V-265VAC,50/60HZ; 12/24VDC
Housing Material:
PC,UV Resistant
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
K=K carton
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 50 51 - 100 >100
Est. Time(day) 10 15 To be negotiated

Dia.200mm 3 color LED fresnel lens traffic light

Model: JD200-3-35AFL



JD200-3-35AFL ().jpg



The application and advantages of Dia.200mm 3 color LED fresnel lens traffic light:

1.Red, yellow and green traffic lights are widely used at intersections and traffic roads to indicate whether vehicles can drive.

2.Long life time

3.Easy to install, either horizontally or vertically.The perspective of big

5.Multiple water discharge moistureproof seal, waterproof

6.Viewing distance

7.Integrated luminescence

8.Energy saving and low energy consumption

9.Accord with international relational standard



Technical Parameters:

Color

LED Q.ty

Light Intensity

Wave Length

Power

Viewing Angle

Power

Working Voltage

Housing Material

Factor

RED

90pcs

450cd

625±5nm

>0.9

30°

5W

85V-265VAC,50/60HZ; 12/24VDC

PC,UV Resistant

YELLOW

90pcs

450cd

590±5nm

5W

GREEN

90pcs

720cd

505±5nm

8W

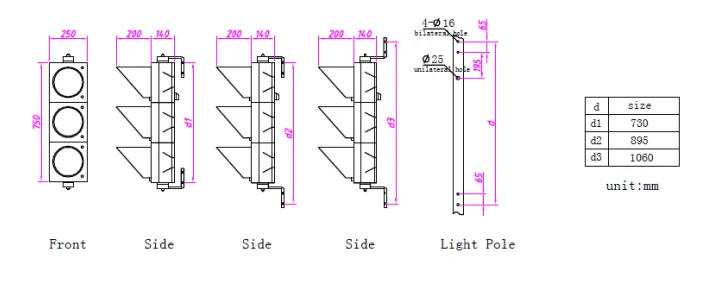

Installation Sketch:

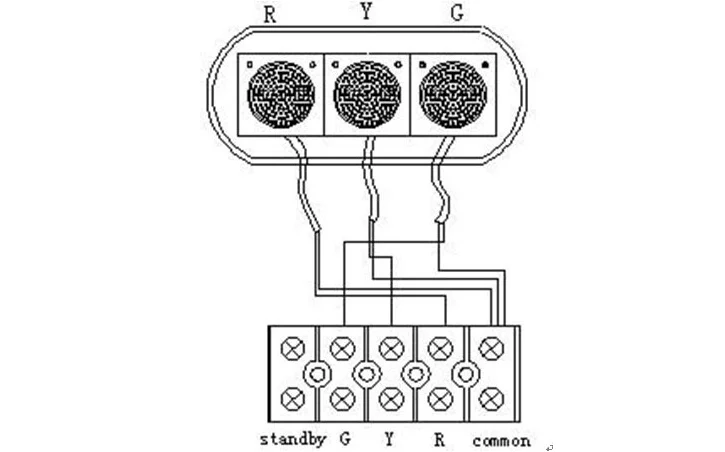

Terminal Connection Sketch:

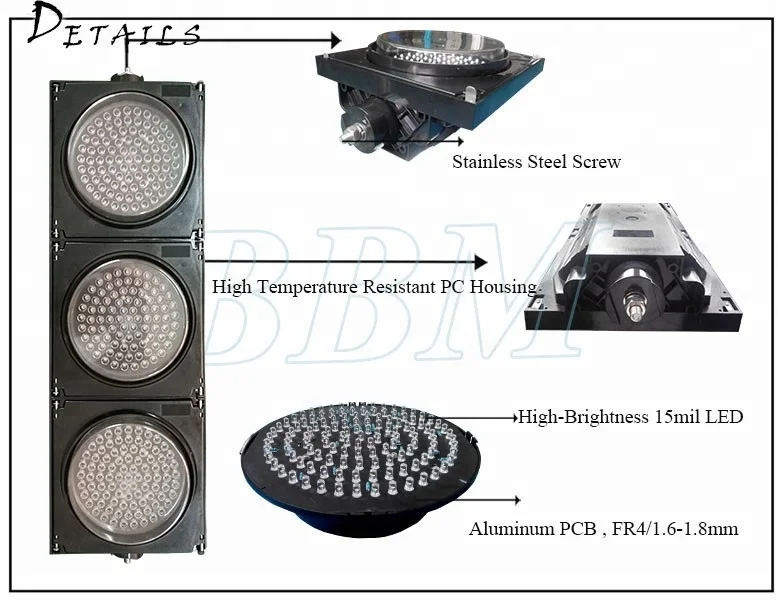

Detail picture:

JD200-3-35AFL (2)



Testing picture:




Packing Info:

Carton Size

Q'TY

GW

NW

Wrapper

Volume(CBM)

91*28*21cm

1pcs/carton

10.7kg

6.5kg

K=K Carton

0.05

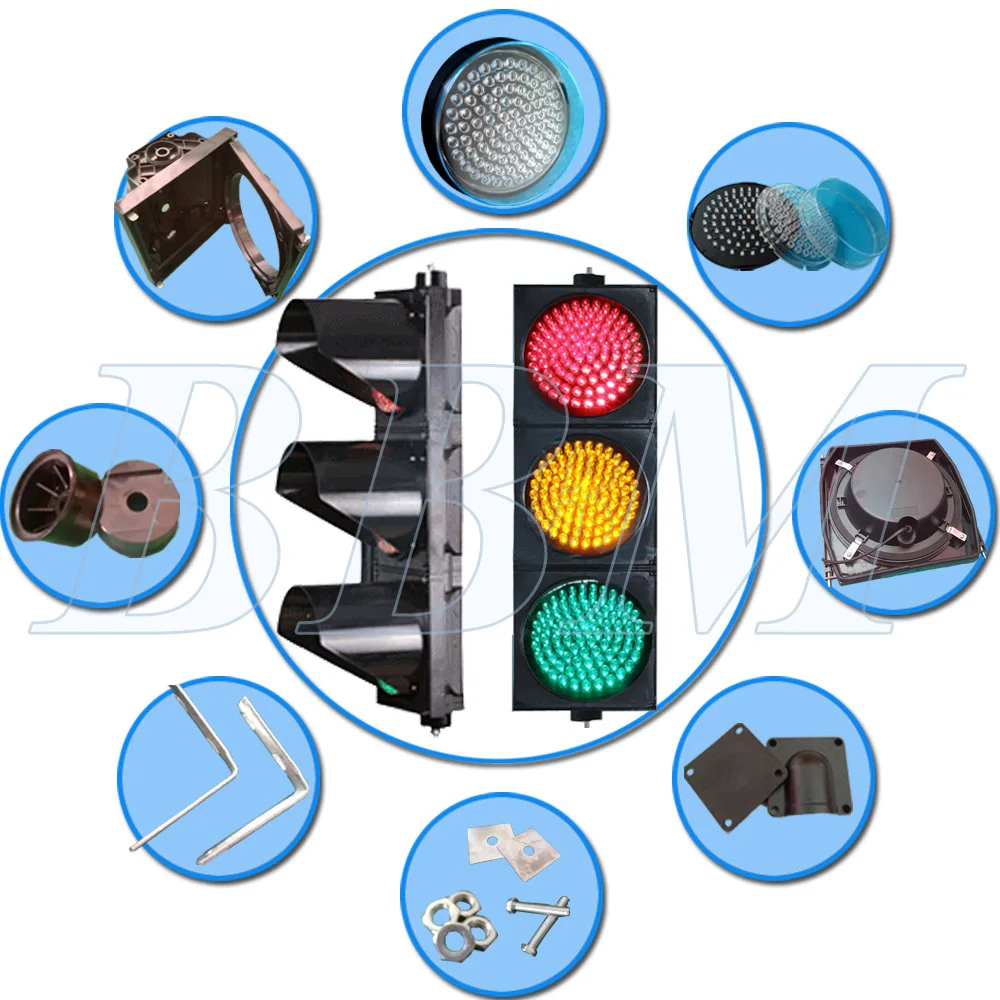

Packing List:

Part name

Light

L Bracket

Sun Visor

M4x10 Screw

M4x20 Screw

Wiring Box And Gasket

Using Manual

Certificate

Q'ty.(pcs)

1

2

3

12

4

1

1

1



Packing picture:




Introduct the BBM Company for you as below:

BBM TECHNOLOGY COMPANY LIMITED was founded in Shenzhen,China.

BBM company mainly produces a series of LED traffic light products, the company is large,and has several authoritative certification certificates.

BBM Projects.jpg






Our company has a variety of traffic lights, if you like our products, you are welcome to consult and order, we are happy to serve you, thank you!
