PC 200mm drive way indicate red yellow green led traffic lights

  • 1 - 20 Sets
    $105.00
  • 21 - 99 Sets
    $102.00
  • >=100 Sets
    $98.00
Model Number:
JD200-3-35A
Lead Time:
Quantity(Sets) 1 - 50 51 - 100 >100
Est. Time(days) 10 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BBM
LED Color:
Red/Yellow/Green
LED Q.ty:
Red:90pcs Yellow:90pcs Green:90pcs
Light Intensity:
Red:≥450cd Yellow:≥450cd Green:≥630cd
Wave Length:
Red:625±5nm Yellow:590±5nm Green:505±5nm
Power Factor:
>0.9
Viewing Angle:
30°
Power:
Red:≤5W Yellow:≤5W Green:≤8W
Working Voltage:
85V-265VAC,50/60HZ; 12/24VDC
Housing Material:
Metal with painting/Aluminum/Stainless
Life Span:
100000 Hours
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
K=K
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 50 51 - 100 >100
Est. Time(days) 10 15 To be negotiated
PC 200mm drive way indicate red yellow green led traffic lights
Modle:JD200-3-35A



The benefit of PC 200mm drive way indicate red yellow green led traffic lights:
1.Long lifetime 100,000h
2.PC/Aluminum
3.Fast delivery
4.CE,ROHS approved
5.Waterproof,Heat-resisting
6.Easy installation
7.Fast delivery
8.CE RoHS GB14887-2003approved
9.Each product come with a rain cover plate

Technical Parameters:

Color

LED Q.ty

Light Intensity

Wave Length

Power

Viewing Angle

Power

Working Voltage

Housing Material

Factor

RED

90pcs

450cd

625±5nm

>0.9

30°

5W

85V~265VAC,50/60HZ; 12/24VDC

PC,UV Resistant

YELLOW

90pcs

450cd

590±5nm

5W

GREEN

90pcs

630cd

505±5nm

8W

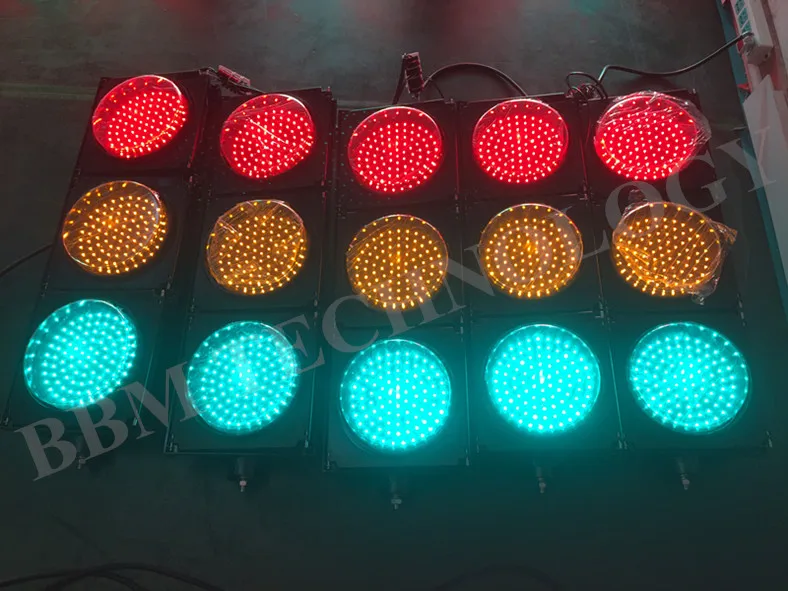

Showing you the testing picture :

Installation Sketch:

Terminal Connection Sketch:


Packing Info:

Carton Size

Q'TY

GW

NW

Wrapper

Volume(CBM)

91*28*21cm

1pcs/carton

10.7kg

6.5kg

K=K Carton

0.05


Packing List:

Part name

Light

L Bracket

Sun Visor

M4x10 Screw

M4x20 Screw

Wiring Box And Gasket

Using Manual

Certificate

Q'ty.(pcs)

1

2

3

12

4

1

1

1

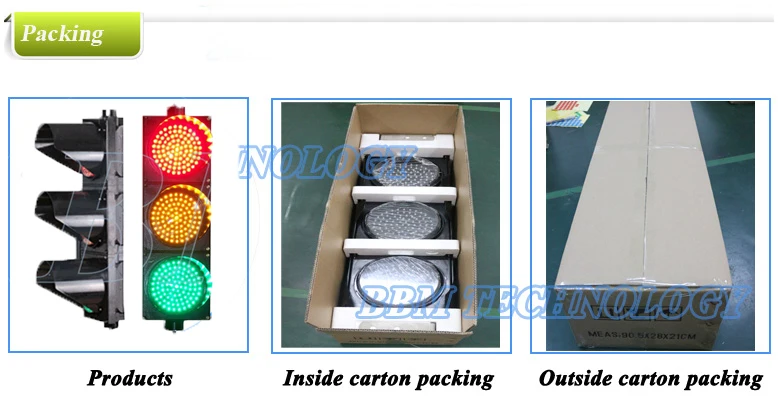

Package figure of products for reference:


The picture of 3 units traffic light advantage:

 Why choose the led traffic light product from BBM Company?
1 ) Wide work voltage
2 ) Water and dust proof
3 ) Long life span;100,000 hours
4 ) Energy saving , low power consumption
5 ) Easy installation,can be mounted by horizontally as well as vertially
6) Reduced operational costs
7) Intergrated LED luminous
8) Uniform optical output
9) Spectifically designed to meeting world standards

Introduct the BBM Company for you as below:
BBM TECHNOLOGY COMPANY LIMITED was founded in Shenzhen,China.
We are one of the largest manufacturer,supplier and Exporter with LED Traffic Light products in China.

BBM Company Certificate:

BBM in the Exhibition:

Why you should choose BBM?
A:Quality certification: CE.ROHS,EN12368 and IP65 and approved other quality standards.
· LED: Our Led is high brightness, large visual angle. all the led use the internations brand Jing yuan etc.
· The housing of material: heat-resisting,Eco-friendly PC material
· Horizontally or vertically is available.
· Wide working voltage: AC85V-265V. 50HZ/ 60HZ. DC12V /DC24V is available which can connect to panel.
· Delivery time: 5-10 days for sample time. 10-15 days for bulk products.
· Quality guarantee period for 2 years.
· More quantity you need that more discount you can got.
· A profession engineer team will design new products per your need.CAD drawing and Program Designing service.
